grasp_rciqed_qed_vp Module Reference

Data Types
interface	potential
	Evaluates the single particle matrix elements of an arbitrary (even) potential represented as an array on the GRASP grid in the basis of GRASP orbitals. More...
interface	qedvp
	Populates a matrix with the matrix elements of a QED vacuum polarization potential. More...

Functions/Subroutines
subroutine	qedvp_init
	Initializes the global state for the vacuum polarization calculations. More...
subroutine	qedvp (matrix)
	Populates matrix with the full QED vacuum polarization matrix elements in the orbital basis. More...
subroutine	qedvp_type (vptype, matrix)
	Populates matrix with the matrix elements of the VP potential corresponding to a contribution defined by vptype. More...
subroutine	potential_kl (v, k1, k2, result)
	Integrates the generic potential, stored in the array v, with orbitals k1 and k2 to obtain a single particle matrix element correponding to those orbitals. More...
subroutine	potential (v, matrix)
	Populates matrix with the matrix elements of potential v. More...

Variables
integer, parameter	nvptypes = 2
character(*), dimension(nvptypes), parameter	vptypes_long = (/ "Uehling ", "Källén-Sabry " /)
character(*), dimension(nvptypes), parameter	vptypes_short = (/ "uehling ", "kallensabry" /)
logical	qedvp_initialized = .false.
real(real64), dimension(:,:), allocatable	vp_potential
real(real64), dimension(:,:), allocatable	qedvp_kl
real(real64), dimension(nnnp)	zdist

Function/Subroutine Documentation

potential()

subroutine grasp_rciqed_qed_vp::potential	(	real(real64), dimension(:), intent(in)	v,
		real(real64), dimension(:, :), intent(out)	matrix
	)

Populates matrix with the matrix elements of potential v.

Internally, it uses the QUAD routine to perform the integration on the standard GRASP grid. It will multiply the value of the potential with RP, so the user should not do that themselves (i.e. internally TA ~ V * RP).

Parameters

v	An array containing the potential, represented on the GRASP grid.
matrix	An NW x NW real64 array for storing the matrix elements.

Here is the call graph for this function:

potential_kl()

subroutine grasp_rciqed_qed_vp::potential_kl	(	real(real64), dimension(:), intent(in)	v,
		integer, intent(in)	k1,
		integer, intent(in)	k2,
		real(real64), intent(out)	result
	)

Integrates the generic potential, stored in the array v, with orbitals k1 and k2 to obtain a single particle matrix element correponding to those orbitals.

Internally, it uses the QUAD routine to perform the integration on the standard GRASP grid. It will multiply the value of the potential with RP, so the user should not do that themselves (i.e. internally TA ~ V * RP).

Parameters

v	An array containing the potential, represented on the GRASP grid.
k1,k2	Indices of the orbitals.
result	The value of the single particle matrix element for orbitals k1 and k2.

Here is the caller graph for this function:

qedvp()

subroutine grasp_rciqed_qed_vp::qedvp

(

real(real64), dimension(:, :), intent(out)

matrix

)

Populates matrix with the full QED vacuum polarization matrix elements in the orbital basis.

The matrix element values are integrated using the vp_vac{2,4} global arrays from this module, which contains both the Uehling and Källen-Sabry terms.

Parameters

matrix

An NW x NW real64 array for storing the matrix elements.

qedvp_init()

subroutine grasp_rciqed_qed_vp::qedvp_init

(

)

Initializes the global state for the vacuum polarization calculations.

If the global state is already initialized, the routine just prints an error message and does not do anything.

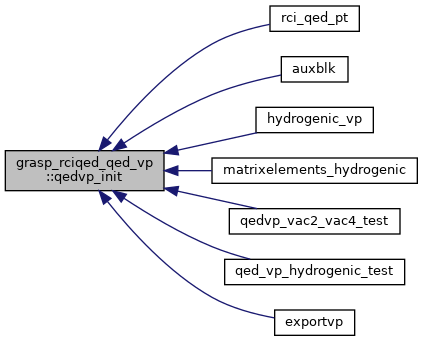

Here is the caller graph for this function:

qedvp_type()

subroutine grasp_rciqed_qed_vp::qedvp_type	(	integer, intent(in)	vptype,
		real(real64), dimension(:, :), intent(out)	matrix
	)

Populates matrix with the matrix elements of the VP potential corresponding to a contribution defined by vptype.

The values of vptype correspond to the following VP contributions:

1. Uehling
2. Källén-Sabry

Parameters

vptype	Integer specifying the VP contribution.
matrix	An NW x NW real64 array for storing the matrix elements.

Variable Documentation

nvptypes

integer, parameter grasp_rciqed_qed_vp::nvptypes = 2

qedvp_initialized

logical grasp_rciqed_qed_vp::qedvp_initialized = .false.

qedvp_kl

real(real64), dimension(:,:), allocatable grasp_rciqed_qed_vp::qedvp_kl

vp_potential

real(real64), dimension(:,:), allocatable grasp_rciqed_qed_vp::vp_potential

vptypes_long

character(*), dimension(nvptypes), parameter grasp_rciqed_qed_vp::vptypes_long = (/ "Uehling ", "Källén-Sabry " /)

vptypes_short

character(*), dimension(nvptypes), parameter grasp_rciqed_qed_vp::vptypes_short = (/ "uehling ", "kallensabry" /)

zdist

real(real64), dimension(nnnp) grasp_rciqed_qed_vp::zdist
